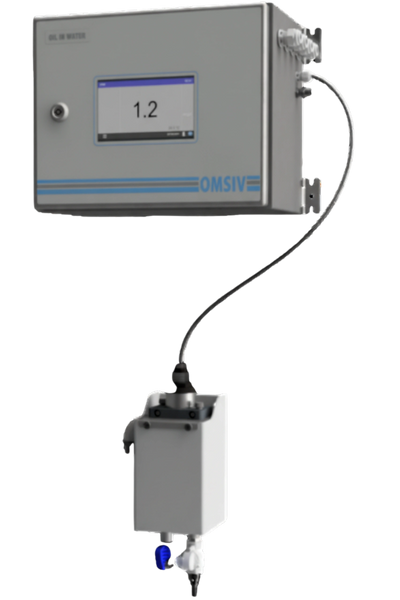

OIW1000

 Online analyzer for the determination of oil-in-water, hydrocarbons, BTEX and PAH.

Method

• Measured parameter    OIW
• Range 30 ppm (eq. PhOH)
• Wavelength (ex.)280 nm
• Wavelength (em.)300 - 400 nm
• Demineralized water - Not required

• Drinking water
• Industrial wastewater
• Oil-in-water monitoring
• BTEX/aromatic hydrocarbons monitorning
• Fuel industry
• Oil refinement/transportation
• Pollution monitoring of surface waters

• No reagents required.

Model: OIW1000

Sampling Mode: Continuous.

Sample : Pressure: max 3 bar, Temperature: 0 ‐ 50°C (32‐ 122°F)

Drain: Pressure-free drain, Connection: 12 mm (½-in.)

Input Streams: 2

Material : Stainless steel 316L.

Dimensions (H x W x D): 176 x 50 x 50 mm (6.9 x 2.0 x 2.0 in)

Weight: 1 kg (2 lbs)

Power Supply:  Input Voltage: 115 VAC,230 VAC, Power consumption: max. 80 W

Output signals: 2 x 4-20 mA analog outputs, Modbus via RS485,Ethernet

Alarms: 2 SPDT programmable voltage-free relays

Digital Input: None

Ambient Temperature: 5 - 50 °C (41 - 122 °F)

Ambient Humidity: 100 % RH

Protection Grade: IP68
